A smart lock upgrade feels great right up until you're staring at your door with a screwdriver in one hand and a confusing manual in the other. The good news is that learning how to install fingerprint door lock systems is usually much simpler than people expect, especially if your door already has a standard deadbolt cutout.
If you can remove an old lock, line up a few parts, and follow a setup sequence on a keypad or app, you can handle this project. The real trick is not speed. It is getting the fit, alignment, and programming right so the lock works smoothly every single day.
Before you install a fingerprint door lock
Start with the door, not the lock. Most fingerprint door lock models are designed to replace a standard single-cylinder deadbolt on doors between 1-3/8 and 1-3/4 inches thick. If your door is much thicker, has a narrow stile, or uses a mortise lock instead of a standard deadbolt, installation can get more complicated fast.
Check the backset too. That is the distance from the edge of the door to the center of the bore hole, and it is usually either 2-3/8 inches or 2-3/4 inches. Many smart locks support both, but not all. A quick measurement now saves a return later.
You should also look at the condition of the door frame. A fingerprint lock can be perfectly installed and still feel unreliable if the bolt drags against the strike plate. Smart hardware likes clean alignment. If your current deadbolt sticks, fix that first.
What you usually need
Most installs only require a Phillips screwdriver, fresh batteries, a tape measure, and maybe a pencil. Some doors need a drill for strike plate adjustments, but many do not. Skip the power driver unless the manufacturer says it is fine. Over-tightening can crack trim pieces or throw the lock out of alignment.
Keep your phone nearby if the lock uses an app, but do not assume the app will walk you through the physical install perfectly. Hardware first, software second is usually the smoother path.
How to install fingerprint door lock hardware step by step
First, open the door and keep it open for the entire job. That sounds obvious, but plenty of people close the door to test the fit too early and end up locked out while the system is half-programmed.
Remove the existing deadbolt from both sides of the door. You will usually unscrew the interior plate, pull off the interior and exterior halves, then slide the latch out from the edge of the door. Once everything is off, wipe down the bore holes and edge cutout so the new parts sit flush.
Next, install the new latch assembly into the edge of the door. Make sure the side marked up or top is facing the right direction. If the latch is adjustable, set it to the correct backset before screwing it in. Do not force it. It should slide into place cleanly.

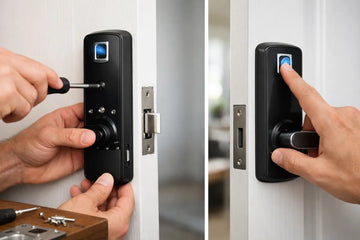

Now position the exterior keypad and fingerprint reader on the outside of the door. Feed the cable under the latch or through the designated opening exactly as the instructions show. This is the point where a lot of installs go sideways. Pinched cables cause power issues, fingerprint reader failures, and random lock behavior that looks like a defective product but is really just a bad routing job.
Move to the interior side and attach the mounting plate. As you feed the cable through, keep the exterior assembly level and snug against the door. Tighten the mounting screws evenly, a little on each side, instead of fully tightening one side first. That keeps the lock straight and reduces binding.
After that, connect the cable to the interior unit and attach the interior assembly. Some models use a tailpiece that must line up with the thumb turn mechanism. If the thumb turn feels stiff once attached, stop and check alignment before installing batteries. A smart lock should feel smooth in manual mode before any electronics are involved.
Insert the batteries, then wait for the startup sequence. Many fingerprint locks automatically hand the bolt during first setup. That process teaches the lock whether your door is left-handed or right-handed and helps it calibrate travel distance. If your model has a reset or learn button, use it exactly when prompted.
Test the fit before you program users
Before adding fingerprints, test the lock manually with the door still open. Extend and retract the deadbolt using the thumb turn, keypad, and any auto-lock function if available. The bolt should move fully without hesitation.
Then test with the door closed. This is where installation quality really shows. If the bolt hits the strike plate, grinds, or only locks when you push or pull the door, the issue is alignment, not fingerprint setup. You may need to adjust the strike plate slightly or deepen the pocket in the frame.
That extra ten minutes matters. Smart locks use a motor, and motors do not love resistance. A lock that struggles every day will burn through batteries faster and wear out sooner.
Setting up fingerprints the right way
Once the mechanical side works, move on to enrollment. Most locks let you add admin users first, then secondary users. Start with one fingerprint for the primary user and test it several times before adding everyone else in the house.
The best fingerprint scans happen when the finger is placed naturally, not flattened awkwardly to satisfy the setup screen. During enrollment, vary the angle slightly between scans so the lock recognizes real-world placement. If you only train it with one exact position, it may feel inconsistent later.
Thumbs are convenient, but index fingers are often easier for quick, accurate reads. If the lock allows multiple fingerprint slots per person, use at least two fingers for anyone who will rely on it daily. That gives you a backup for wet hands, cuts, or rushed entry.
If your model includes app pairing, finish that after fingerprints are working. App control is useful, but the fingerprint reader and keypad are your everyday access points. Get those dialed in first.
Common installation mistakes that cause headaches
The biggest mistake is assuming all standard doors are truly standard. Doors shift over time, especially in apartments, older homes, and humid climates. If the old deadbolt already needed a little shoulder-check to close, your new fingerprint lock will notice.
The second mistake is over-tightening screws. That can twist the chassis just enough to affect bolt travel or make the keypad sit unevenly. Tight is good. Cranked down is not.
Another common issue is mixing up latch orientation. If the beveled side or marked face is installed backward, the door may not latch or lock correctly. It is a small detail with big consequences.
Battery mistakes are more common than people expect too. Use fresh, high-quality batteries right from the start. Cheap or old batteries can cause weak motor performance, delayed response, or random beeping that sends people into unnecessary troubleshooting mode.
When installation is easy and when it depends
If you are swapping out a basic deadbolt on a newer door, this is usually a straightforward 20 to 45 minute job. That is the sweet spot for most shoppers who want a practical home upgrade without turning it into a weekend project.
If your door has warped wood, a nonstandard prep, decorative handleset interference, or a misaligned frame, expect extra work. In those cases, the smart lock is not the hard part. The door is. Sometimes a fingerprint lock install becomes a minor door repair project first.
Renters should check their lease before replacing hardware. Some landlords allow lock changes if you keep the original hardware and reinstall it when moving out. Others want approval first. It is worth checking before you start removing anything.
Is DIY worth it?
For most people, yes. Installing a fingerprint door lock is one of those upgrades that delivers an immediate lifestyle win. No key hunting, no last-minute lockout panic, no handing out spare keys to everyone who needs access. You get faster entry, cleaner control, and a front door that feels more current.
That said, DIY is worth it only if the lock operates smoothly when you are done. If alignment is off and troubleshooting starts eating your evening, calling a handyman or locksmith can be the smarter move. Convenience should stay convenient.
A well-installed fingerprint lock does more than look modern. It trims one more small friction point from daily life, and that is the kind of upgrade that actually earns its place at the door.
